Manufactured by RICHENG Technology (Shenzhen), the YC136BE30C-A54 is a 13.6" IPS TFT LCD module with WQXGA (2560×1600) resolution — a high-resolution, high-brightness panel positioned by the manufacturer for drawing-pad and similar precision-display applications.

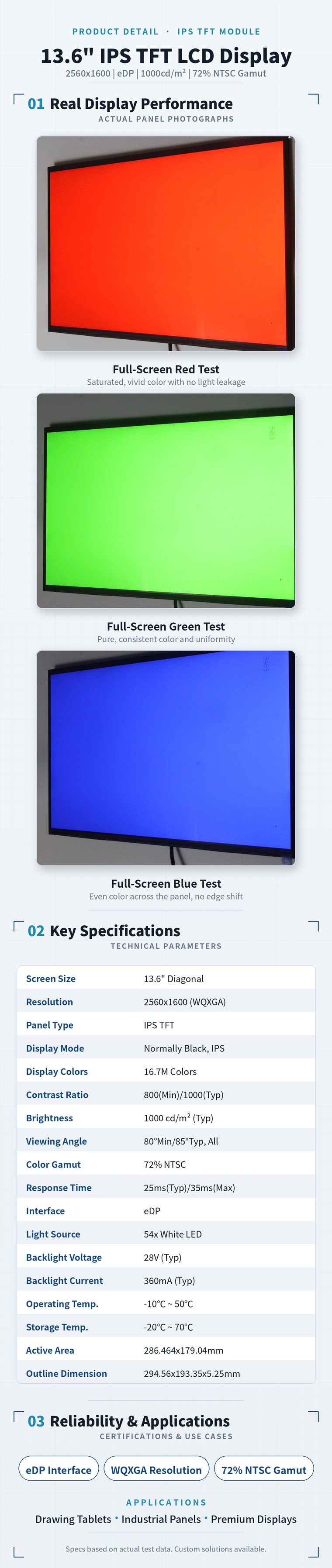

Key specifications
| Parameter | Value |
|---|---|
| Screen size | 13.6" diagonal |
| Resolution | 2560×1600 (WQXGA) |
| Panel type | IPS TFT, Normally Black |
| Display colors | 16.7M |
| Contrast ratio | 1000:1 (typ) |
| Brightness | 1000 cd/m² (typ) |
| Viewing angle (all directions) | 80° min / 85° typ, CR>10 |
| Response time | 25–35ms (Tr+Td) |
| Color gamut | NTSC 68% min / 72% typ |
| Interface | eDP |
| Light source | 54 LEDs, white (28V, 360mA) |
| Module dimension | 294.56 × 193.35 × 5.25 mm |
| Active area | 286.464 × 179.04 mm |
| Pixel pitch | 0.1119 × 0.1119 mm |
| Transmittance | 3.97% |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 70°C |
High resolution and high brightness, together
At 2560×1600 with 1000 cd/m² typical brightness, this panel pairs pixel density fine enough for detailed on-screen work with brightness that holds up better than a typical 300–500 cd/m² panel under bright ambient light. The manufacturer specifically calls out drawing-pad applications — a category where both specs matter simultaneously: resolution for stylus precision, brightness for visibility under studio or overhead lighting.
Interface & driving
- eDP electrical interface, standard for this size and resolution class
- 54-LED backlight array (28V, 360mA) driving the 1000 cd/m² typical brightness
- 0.4T cover glass compatibility per manufacturer specification — confirm this matches your mechanical stack if you're adding a custom cover lens or touch layer
Typical applications
Drawing pads and stylus-input devices, high-resolution portable monitors, and other applications where both fine pixel density and strong brightness are priorities at the same time.
