Manufactured by RICHENG Technology (Shenzhen), the YC080IM40C_A24 is an 8.0-inch IPS TFT LCD module with an integrated capacitive touch panel (CTP) and a portrait-native 800×1280 resolution — built for compact handheld and POS-style devices that need both a wide-angle display and reliable touch input in one module.

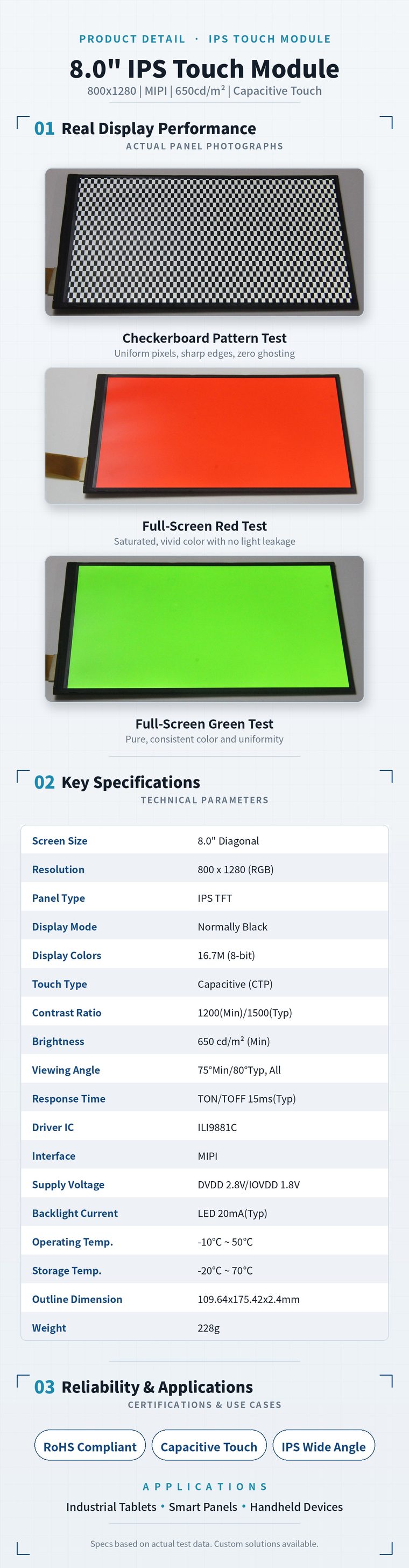

Key specifications
| Parameter | Value |
|---|---|
| Screen size | 8.0" diagonal |
| Resolution | 800×1280 (portrait) |
| Panel type | IPS TFT, Normally Black |
| Display colors | 16.7M |
| Contrast ratio | 800:1 (typ) |
| Brightness | 650 cd/m² (min) |
| Viewing angle (all directions) | ≥75° min / 80° typ |
| Response time | 15–20ms (rise) / 15–25ms (fall) |
| Interface | MIPI |
| Driver IC | ILI9881C |
| Touch panel | Integrated capacitive touch (CTP) |
| Module dimension | 109.64 × 175.42 × 2.4 mm |
| Active area | 107.64 × 172.24 mm |
| Weight | 228 g |
| Backlight | 24 LEDs, white |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 70°C |
One module, display and touch together
Unlike our 10.1" IPS module (display only), this 8.0" panel ships with the capacitive touch layer already integrated — one connector, one supplier, one QC process for both display and touch, instead of sourcing and bonding them separately. That's a meaningful simplification for compact handheld or POS-style products where BOM count and assembly steps matter.
Interface & driving
- MIPI 4-lane display interface driven by the ILI9881C
- Touch controller signals (SCL/SDA/RST/INT) routed on the same FPC as the display interface — confirm your board's touch controller compatibility when requesting a quote
- 650 cd/m² minimum brightness gives useful headroom for handheld devices used in mixed indoor/outdoor lighting
Typical applications
Handheld POS terminals, compact access-control panels, portable instrumentation, and other pocket-sized or handheld devices that need integrated touch on an IPS display.
Need help matching your touch controller to this panel? Request a quote with your requirements.
