10.1" IPS TFT LCD Display Module (YC101IM40CT-A36X)

Name: 10.1" IPS TFT LCD Display Module — YC101IM40CT-A36X
Brand: MatrixScreen
SKU: YC101IM40CT-A36X

Manufactured by RICHENG Technology (Shenzhen), the YC101IM40CT-A36X is a 10.1-inch IPS TFT LCD module with a portrait-native 800×1280 resolution and an ultra-thin 2.55mm profile — built for handheld terminals, portrait-mount kiosks, and other applications where panel thickness and wide-angle viewing matter more than raw size.

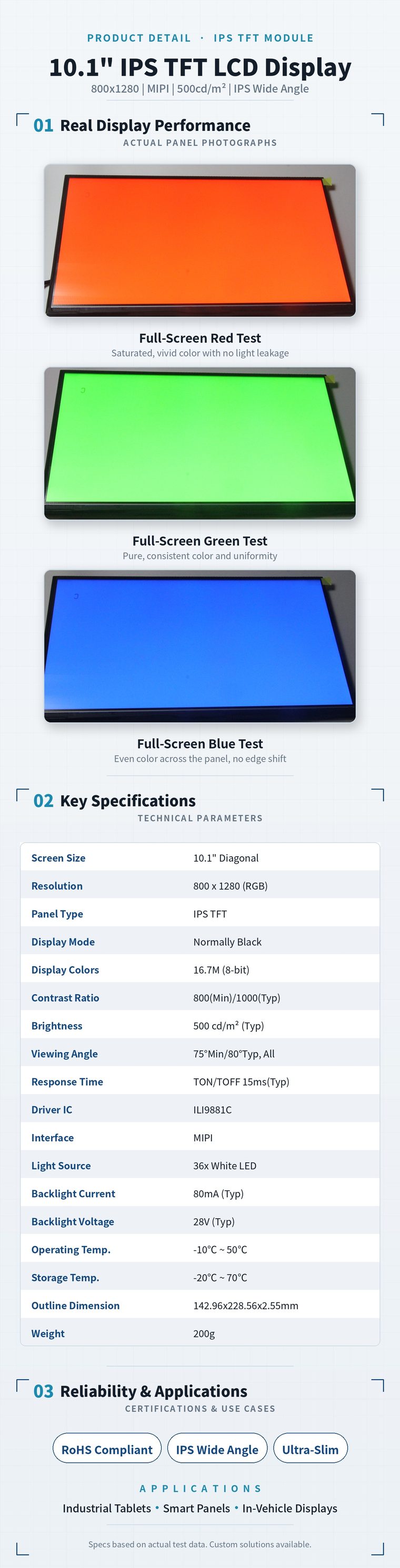

Key specifications

Parameter	Value
Screen size	10.1" diagonal
Resolution	800×1280 (portrait)
Panel type	IPS TFT, Normally Black
Display colors	16.7M
Contrast ratio	1000:1 (typ)
Brightness	500 cd/m² (typ)
Viewing angle (all directions)	≥75° min / 80° typ
Response time	15–20ms (rise) / 15–25ms (fall)
Interface	MIPI
Driver IC	ILI9881C
Module dimension	142.96 × 228.56 × 2.55 mm
Active area	135.36 × 216.58 mm
Weight	200 g
Backlight	36 LEDs, white
Operating temperature	-10°C to 50°C
Storage temperature	-20°C to 70°C
Touch panel	Not integrated

Why IPS matters here

Wide-angle viewing is IPS's defining advantage over standard TN panels — this module holds color accuracy and contrast at ≥75° from every direction, not just top-to-bottom. For a portrait-mounted device viewed from varying angles and heights (wall-mounted terminals, handheld devices passed between users), that consistency matters more than peak brightness alone.

Interface & driving

40-pin FPC connector, MIPI 4-lane data interface with a dedicated clock pair
Driven by the ILI9881C, a widely supported MIPI display driver IC with broad SoC compatibility
No touch controller on this variant — pair with an external capacitive or resistive touch layer if your product needs input, or see our 8.0" module with integrated capacitive touch

Typical applications

Handheld terminals, access control and intercom panels, portable instrumentation, and other portrait-oriented devices where a thin (2.55mm) IPS panel with wide-angle viewing is a priority.

Need this panel with a custom touch layer or cover glass? Request a quote with your requirements.
