Manufactured by RICHENG Technology (Shenzhen), the YC-LCM121005 is a 12.1-inch industrial-grade TFT LCD module built for continuous 24/7 operation in demanding environments — control panels, white goods, and portable instrumentation.

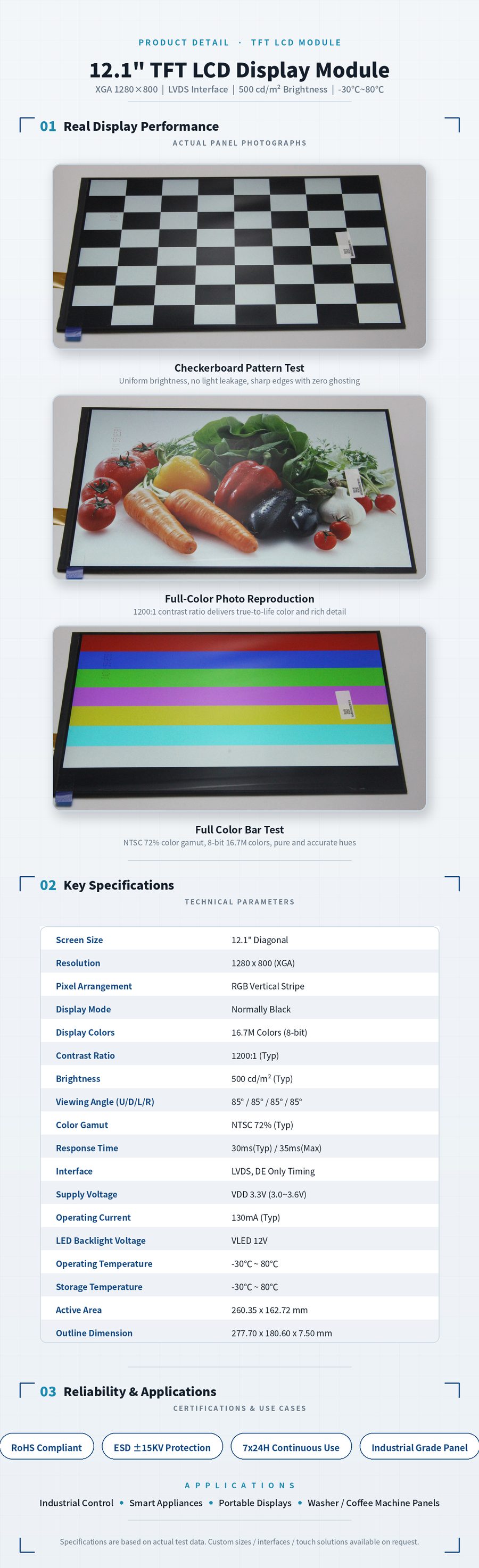

Key specifications
| Parameter | Value |
|---|---|
| Screen size | 12.1" diagonal |
| Resolution | 1280×800 (XGA) |
| Pixel arrangement | RGB vertical stripe |
| Display mode | Normally Black |
| Display colors | 16.7M (8-bit) |
| Contrast ratio | 1200:1 (typ) |
| Brightness | 500 cd/m² (typ) |
| Viewing angle (U/D/L/R) | 85° / 85° / 85° / 85° |
| Color gamut | NTSC 72% (typ) |
| Response time | 30ms typ / 35ms max |
| Interface | LVDS, DE only timing |
| Supply voltage | VDD 3.0–3.6V (typ 3.3V) |
| Operating current | 130mA (typ) |
| LED backlight voltage | 12V |
| LED lifetime | 35,000 hours |
| Operating temperature | -30°C to 80°C |
| Storage temperature | -30°C to 80°C |
| Active area | 260.35 × 162.72 mm |
| Outline dimension | 277.70 × 180.60 × 7.50 mm |
| ESD protection | ±15KV air discharge, ±8V contact discharge |
Interface & connector
- 30-pin LVDS receptacle connector (CN1), plus a 6-pin 0.5mm-pitch backlight power connector (CN2)
- 1 pixel/clock LVDS data mapping, DE-only timing — HSYNC/VSYNC are not required for normal operation
- Best operating clock frequency 75MHz (maximum 80.9MHz without spread spectrum)
Reliability
Tested to 240 hours each at +80°C and -30°C storage and operation, 60°C/90%RH humidity, and 100 cycles of -30°C to +85°C thermal shock, plus checkerboard and gray-level image-sticking verification. RoHS compliant.
Typical applications
Industrial control terminals, smart white goods (washing machines, coffee machines), portable displays, and other equipment requiring a wide-temperature, high-brightness 12.1" panel with landscape or portrait mounting flexibility.
Need a custom cover glass, touch layer, or a different interface on this panel? Request a quote with your requirements.
