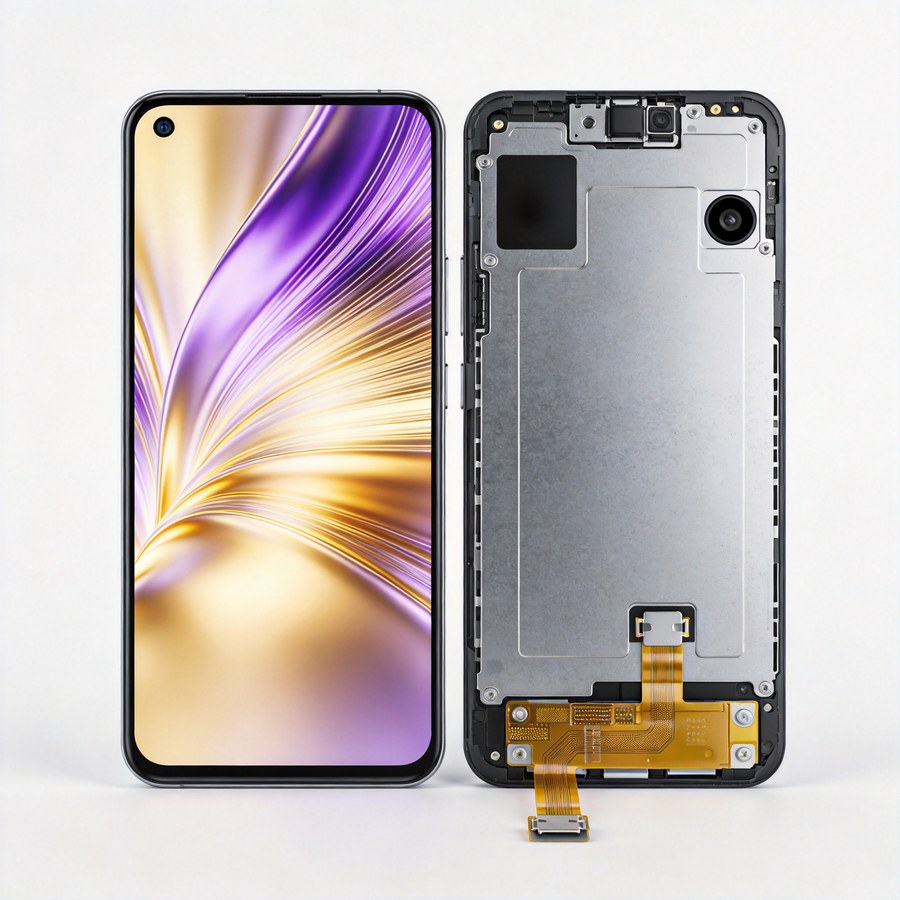

6.9–7.2" AMOLED / OLED, wide color gamut display module for smartphones — suggested reference model MS-AMOLED-72QHD.
Key specifications
| Parameter | Value |
|---|---|
| Screen size | 6.9–7.2" |
| Resolution | QHD+ class (3200×1440 tier) |
| Pixel density | ≈487 (3200×1440 @7.2") PPI |
| Aspect ratio | 20:9 / 21:9 |
| Panel type | AMOLED / OLED, wide color gamut |
| Display colors | 16.7M |
| Brightness | 500–800 cd/m² |
| Contrast ratio | 1,000,000:1 (typ.) |
| Refresh rate | 60 / 90 / 120 Hz selectable |
| Viewing angle | All-angle |
| Touch | In-cell capacitive touch |
| Interface | MIPI-DSI, 4-lane |
| Cover glass | 2.5D, optional AG / AF / 9H hardness |
| Operating temperature | -20°C to +70°C |
Highlights
- One of the largest phone panel sizes we quote — bridges phone and small-tablet form factors
- Selectable 60/90/120 Hz refresh rate
- Wide color gamut support for media-focused device positioning
- Panel type, refresh rate, brightness and connector all open to customization
Typical applications
Android oversized-screen phones, early phablet-class devices (Mi Max tier).
Customization
Cover glass finish, FPC routing, connector type, driver IC and brightness can all be adjusted to match your structural spec and BOM requirements.
The specifications above are representative values for this size class, based on mainstream modules currently in production. Final specifications are confirmed against the official datasheet for the exact part selected at quote stage.
Need this size for a specific project? Request a quote and we'll confirm the exact part and datasheet.
