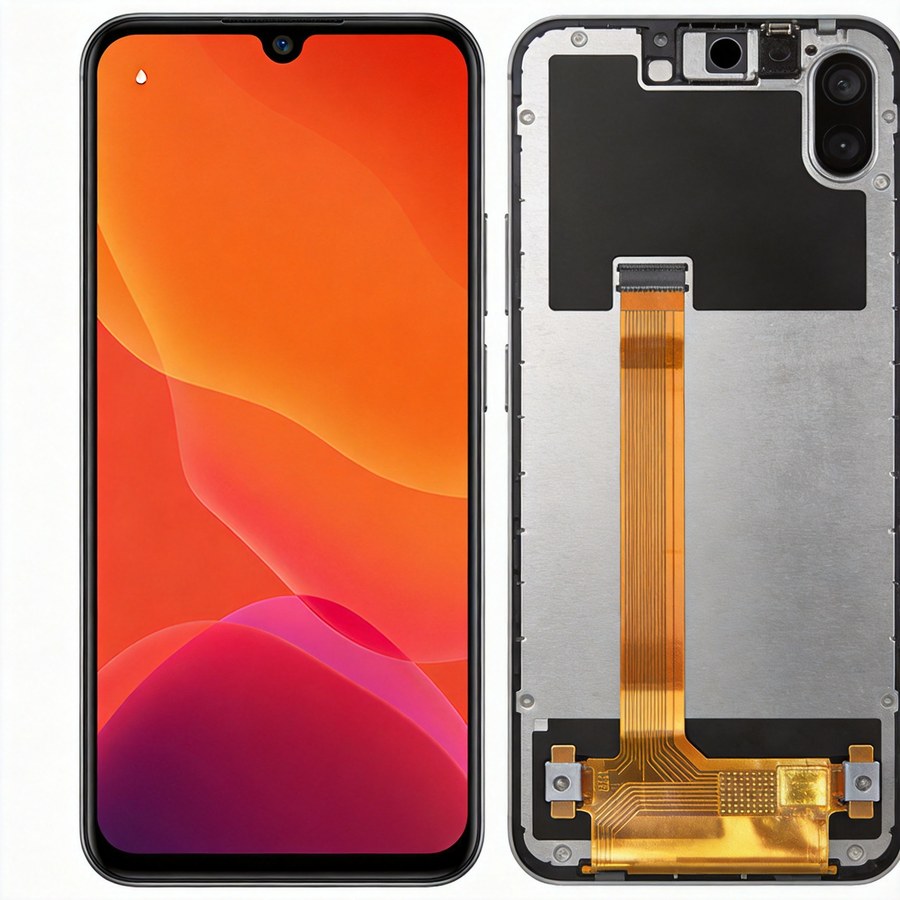

6.3–6.5" OLED / AMOLED display module for smartphones — suggested reference model MS-OLED-65FHD.
Key specifications
| Parameter | Value |
|---|---|
| Screen size | 6.3–6.5" |
| Resolution | 2700×1224 / 2800×1260 |
| Pixel density | ≈472 (2800×1260 @6.5") PPI |
| Aspect ratio | 20:9 |
| Panel type | OLED / AMOLED |
| Display colors | 16.7M |
| Brightness | 400–600 cd/m² |
| Contrast ratio | 1,000,000:1 (typ.) |
| Viewing angle | All-angle |
| Touch | In-cell capacitive touch |
| Interface | MIPI-DSI, 4-lane |
| Cover glass | 2.5D, optional AG / AF / 9H hardness |
| Operating temperature | -20°C to +70°C |
Highlights
- Sized for the mid-range Android sweet spot — the highest-volume Android segment
- 20:9 aspect ratio matches current mid-range industrial design trends
- In-cell touch and OLED panel keep the module thin and light
- FPC, connector, driver IC and brightness open to customization
Typical applications
Android mid-range mainstream and high-volume models.
Customization
Cover glass finish, FPC routing, connector type, driver IC and brightness can all be adjusted to match your structural spec and BOM requirements.
The specifications above are representative values for this size class, based on mainstream modules currently in production. Final specifications are confirmed against the official datasheet for the exact part selected at quote stage.
Need this size for a specific project? Request a quote and we'll confirm the exact part and datasheet.
