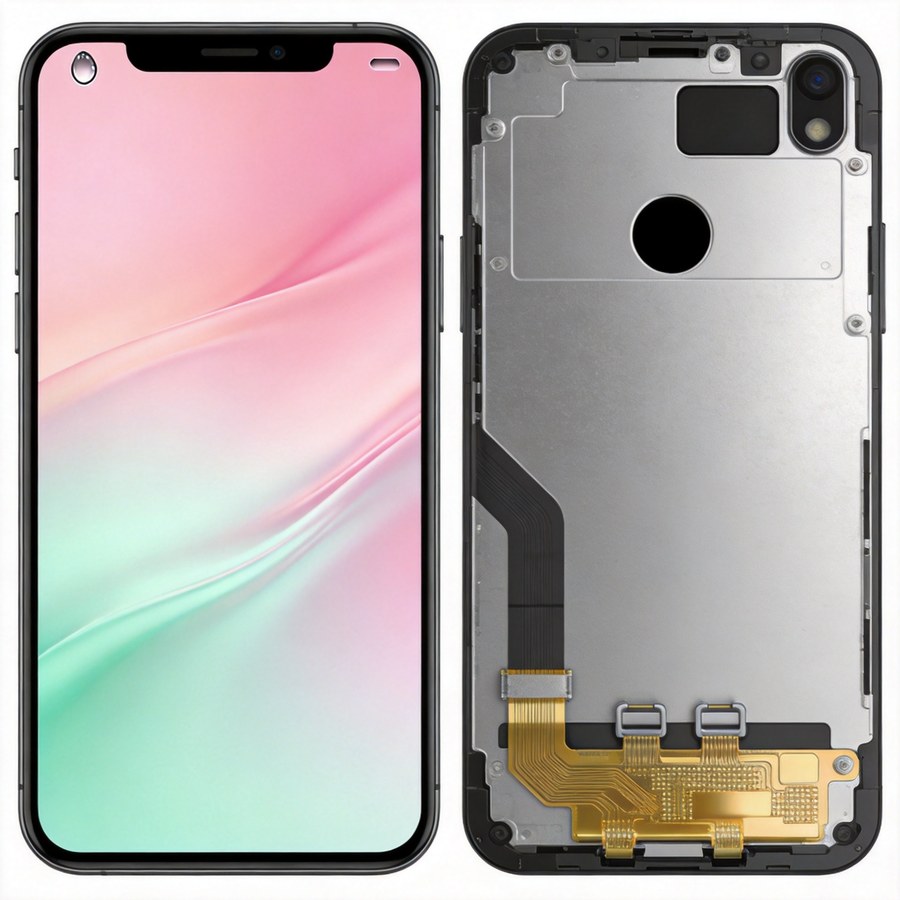

5.8–6.1" premium AMOLED phone display module for cost-balanced mainstream flagships — suggested reference model MS-OLED-61V2. A higher-spec alternative to our standard 5.8–6.1" panel (MS-OLED-61FHD), with HDR peak brightness, 120Hz refresh and 10-bit color.
Key specifications
| Parameter | Value |
|---|---|
| Screen size | 5.8–6.1" |
| Resolution | 2532×1170 / 2778×1284 |
| Pixel density | ≈457–460 PPI |
| Aspect ratio | 19.5:9 / 19.3:9 |
| Panel type | AMOLED |
| Interface | MIPI-DSI |
| Refresh rate | 60 / 120 Hz selectable |
| Brightness (typical) | 800–1000 nits |
| Brightness (HDR peak) | 1200–1600 nits |
| Contrast ratio | ≥1,000,000:1 |
| Color gamut | DCI-P3 / 100% sRGB |
| Color depth | 10-bit (1.07B colors) |
| Touch | Capacitive, optional integration |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -30°C to +80°C |
Highlights
- HDR-grade peak brightness (up to 1600 nits) well above our standard FHD panel for this size class
- 120Hz refresh option for smoother scrolling and gaming-adjacent use cases
- 10-bit color with full DCI-P3 / sRGB coverage for color-critical media display
- Same 5.8–6.1" footprint as our standard MS-OLED-61FHD, so it drops into the same mechanical envelope
Typical applications
Mainstream standard-tier flagships — full iPhone standard line, Huawei/Xiaomi standard-series digital phones, mid-to-upper Android flagships where display quality is a differentiator.
MS-OLED-61FHD vs. MS-OLED-61V2
Same size and interface footprint, different positioning: MS-OLED-61FHD is our cost-optimized mainstream option (400–600 cd/m², 60Hz), while MS-OLED-61V2 targets builds that want HDR peak brightness, 120Hz and 10-bit color in the same 5.8–6.1" form factor.
Customization
Refresh rate, brightness tier, color calibration, cover glass finish and touch integration can all be adjusted to match your structural spec and BOM requirements.
The specifications above are representative values for this size class, based on mainstream modules currently in production. Final specifications are confirmed against the official datasheet for the exact part selected at quote stage.
Need this size for a specific project? Request a quote and we'll confirm the exact part and datasheet.
