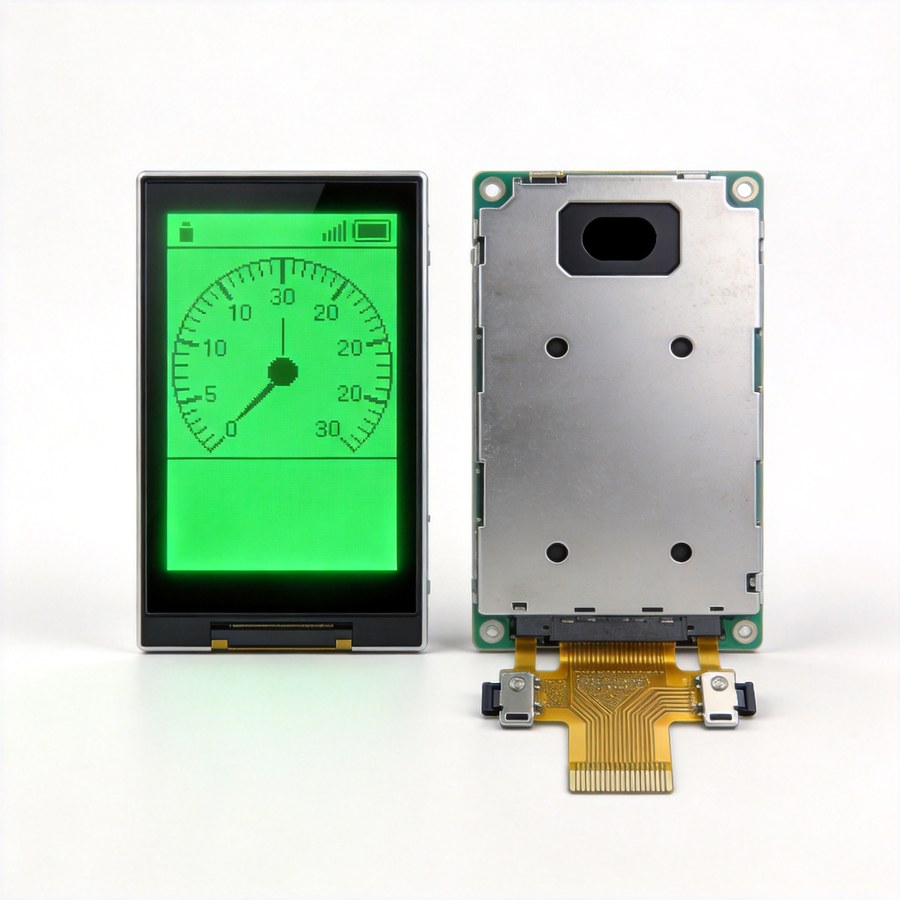

2.4 / 2.8 / 3.5" TFT LCD display module for industrial and smart-hardware applications — suggested reference model IW-TFT-2.4-3.5.
Key specifications
| Parameter | Value |
|---|---|
| Screen size | 2.4 / 2.8 / 3.5" |
| Resolution | QVGA 320×240 / HVGA 480×320 |
| Pixel density | 167 (2.8" QVGA) / 200 (3.5" HVGA) PPI |
| Panel type | TFT LCD |
| Interface | SPI / 8080 / MIPI |
| Driver IC | ILI9341 / ST7796 |
| Brightness | 350–500 cd/m² |
| Contrast ratio | 800:1 (typ.) |
| Viewing angle | IPS, full viewing angle |
| Touch | Optional resistive or capacitive touch |
| Operating temperature | -20°C to +70°C (wide-temperature version available) |
Highlights
- Balances visibility and portability for handheld device designs
- Multiple interface options (SPI/8080/MIPI) to match different MCU/SoC platforms
- Resistive or capacitive touch available
- Wide-temperature version available (-20°C to +70°C)
Typical applications
Two-way radios, handheld test/measurement instruments, facial-recognition access-control secondary screens.
Customization
Interface, driver IC, touch technology, cover treatment and operating-temperature range can all be adjusted for your build.
The specifications above are representative values for this size class, based on mainstream modules currently in production. Final specifications are confirmed against the official datasheet for the exact part selected at quote stage.
Need this size for a specific project? Request a quote and we'll confirm the exact part and datasheet.
